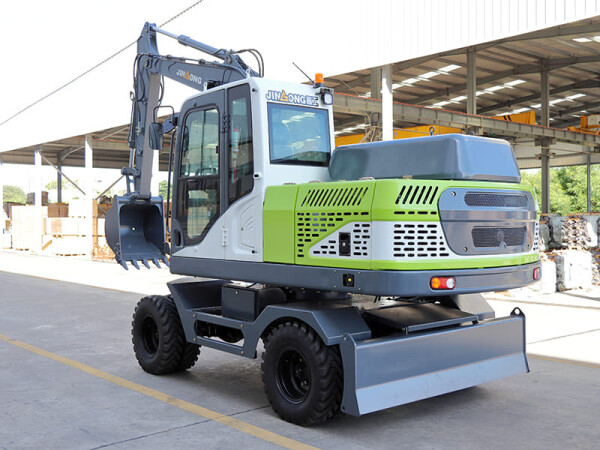

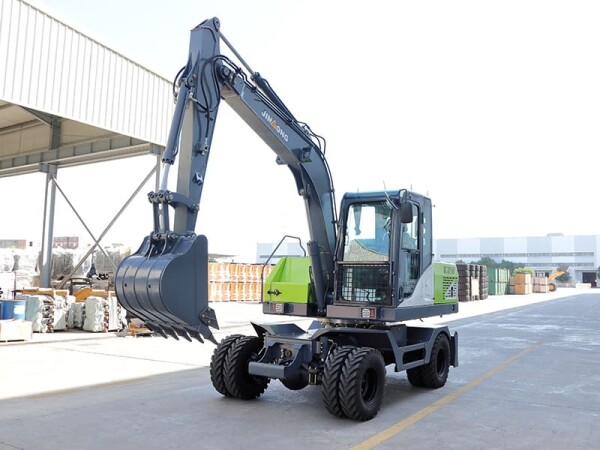

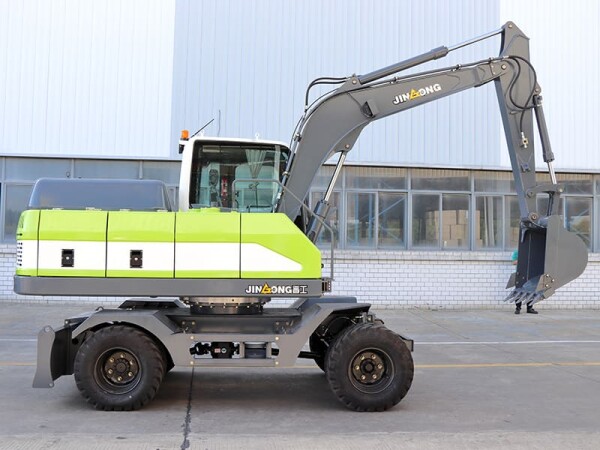

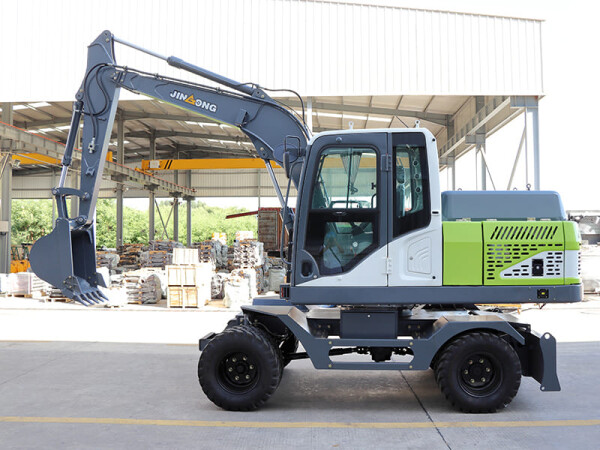

Electric Excavator
Most professional construction machinery manufacture since 1979-JGM Machinery
Most professional construction machinery manufacture since 1979-JGM Machinery
Product description
1. Super Continuous Working Time
International first-class quality lithium iron phosphate battery, high energy density, high charge and discharge efficiency; Energy recovery system, longer battery life and more energy efficient; Continuous Working time: ≥10h; Battery 15%~100% Charging Time: 60 minutes.
2. Zero emissions, low noise
Especially suitable for urban municipal construction; One machine reduces carbon emissions by about 13 tons in one year; Noise around the ear ≤ 74 dB, outside noise ≤ 93.9 dB
3. High safety and super adaptability
The motor is not affected by the high altitude environment; Battery with heating and cooling system; It can perfectly adapt to various working conditions from -35° to 60°, and at the same time, it can adapt to various extreme working conditions such as high altitude, humidity, dust and so on. Leakage automatic protection function.
4. Top configuration

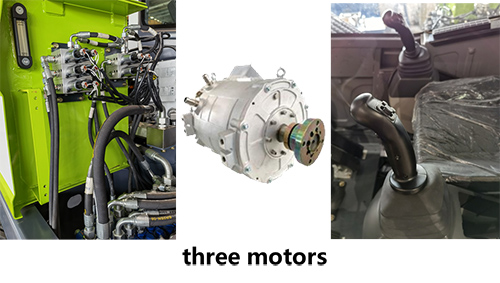

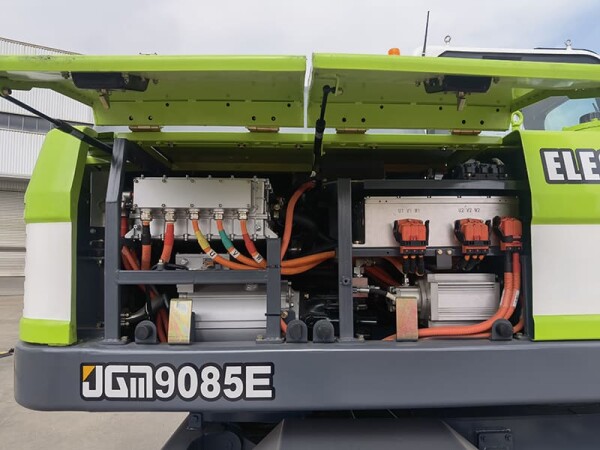

Driven by three motors, operation, steering, and walking are driven by separate motors, which is more energy-saving. At the same time, it has the function of energy recovery during walking and steering, which further improves the battery life of the whole machine;
Using electric proportional pilot valve and electric signal pilot handle, the operation is lighter and more precise;
It can option radio signals to easily realize remote control and deal with extremely dangerous conditions.

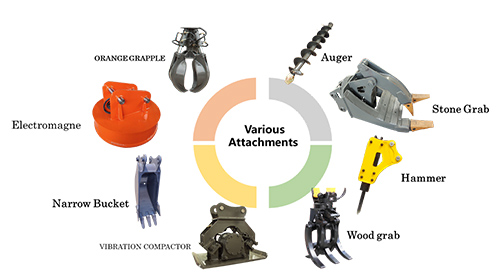

5. Various attachments
Can option a variety of attachments, powerful functions, suitable for different working conditions.
Performance parameters
ITEM |
JGM9085E |
Operating weitht(kg) |
8050 |
Overall dimension(LxWxH)(mm) |
6700×2140×2885 |
Bucket capacity(m³) |
0.3 |
Max. digging force(kN) |
45 |
Travelling speed(km/h) |
0~30 |
Grading capacity(°) |
30 |
Battery capacity(kWh) |
140 |
Continuous Working Hour(h) |
≥10 |
Battery15%~100% Charging time (h) |
1h |
Noises at driver location(dB) |
≤74 |
Noises outside (dB) |
≤93.9 |
Max. digging height(mm) |
6770 |
Max. digging depth(mm) |
3550 |
Max. digging radius (mm) |
6560 |
Max. dumping height(mm) |
4790 |
Max. digging distance (mm) |
6320 |
Max. doze depth(mm) |
105 |
Max. doze height (mm) |
345 |
Note:Specifications are subject to changes by the manufacturer without prior notice.
