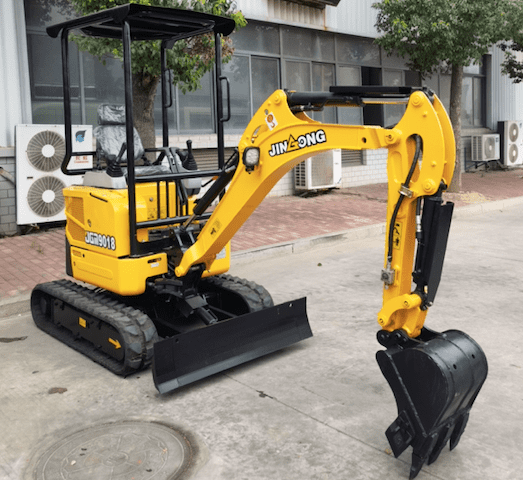

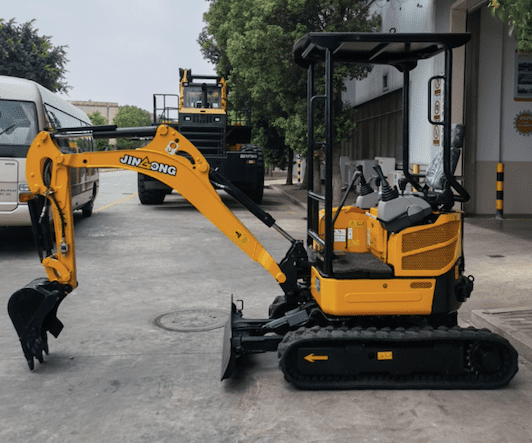

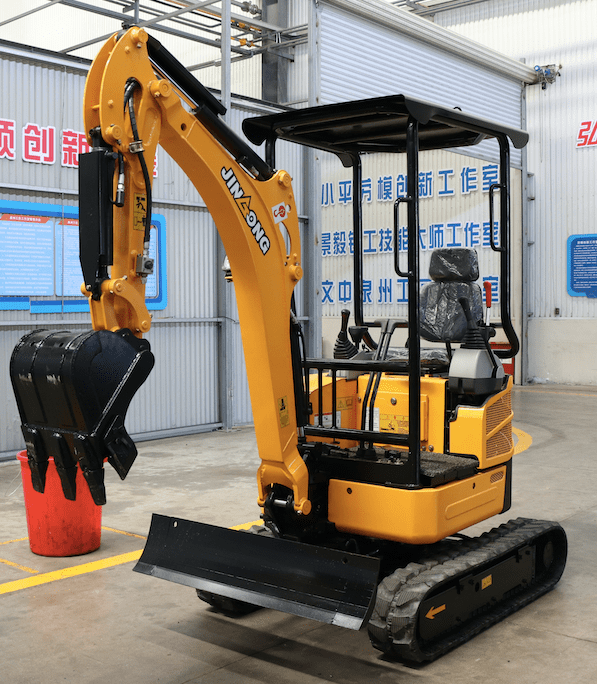

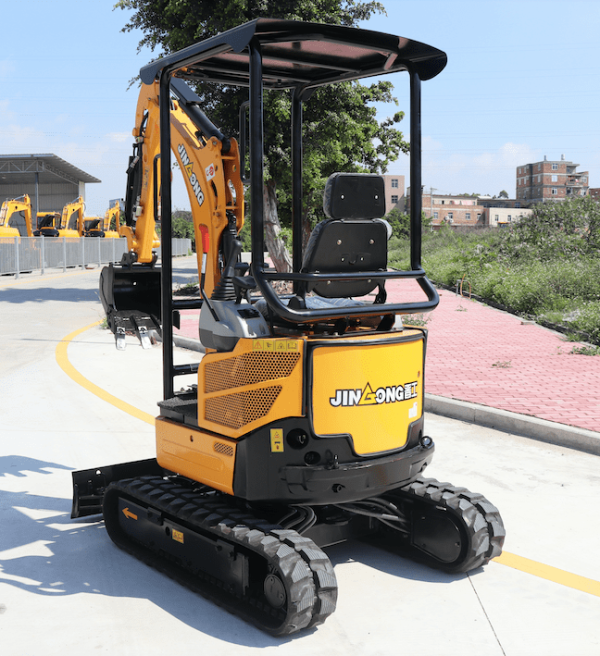

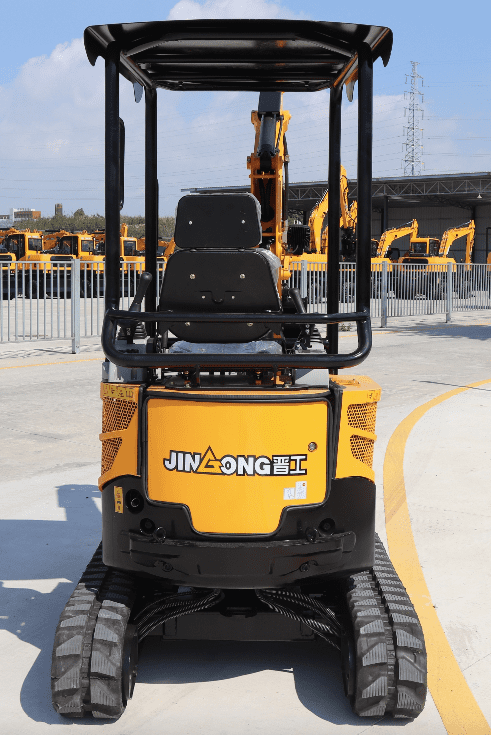

Pilot Operation | Working smoothly, Fast and Powerfully | Adjustable Blade | Excellent Durability | Optional Breaker and Pipeline | World-Class Sercurity
1. Excellent work efficency and excellent performance.
2. Easy to Operate, compact and fexible, and convenient to transport,
suitable for operation in a small area.
3. The standard blade can level the ground, backfill the earth and increase the
stability of the whole machine.
4. Multiple functions such as digging, crushing, clearing trenches,
drilling holes, bulldozing, etc. It can quickly replace attachments, and the machine utalization rate is
greatly improved.
* FULL AC CAB IS AVAILABLE AS AN OPTION
Parameter
Items
Parameters
Operating weight (kg)
1760
Engine
Engine Model
Yanmar 3TNV70-SSY
Emission Standard
Tier III
Rated power/speed (kW/rpm)
10.3/2200
Displacement (L)
3/0.854
Specs
ground pressure Kpa(kgf/cm2)
25(0.24)
Gradeability( °)
30
Slewing speed (r/min)
8.2
Travel speed (km/h)
2/3.5
boom swing lift ( °)
65
boom swing right ( °)
58
hydraulic system
pressure (Mpa)
22
hydraulic system
joystick pressure (Mpa)
3.5
electric
system voltage (V)
12
bucket
bucket capacity (m3)
0.04
bucket
width (mm)
400
digging force (kN)
15.2
working dimention
Max digging radius (mm)
3900
Max digging depth (mm)
2310
max vertical digging
depth (mm)
1910
Max dumping height (mm)
2240
Min
swing radius (mm)
245
Blade Shovel
Max soil
height(mm)
2000
Max
depth (mm)
200
Blade length*width (mm)
1240×268
Dimension
Overall length (mm)
3560
Overall width (mm)
1236
overall height (mm)
2328
Track Width - Retracted (mm)
994
The structure and parameters are subject to change without prior notice due to
technical progress. If the sample product is different from the actual product in some way, the actual
product shall prevail.
Note:Specifications are subject to changes by the manufacturer without prior notice.
