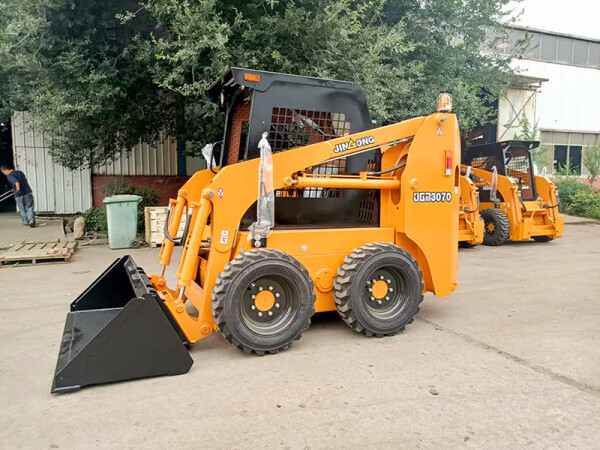

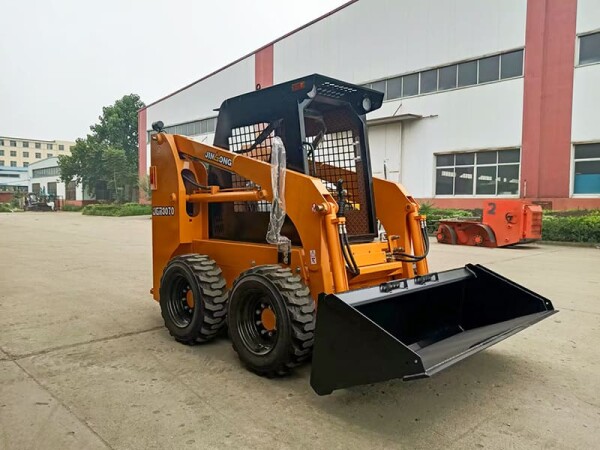

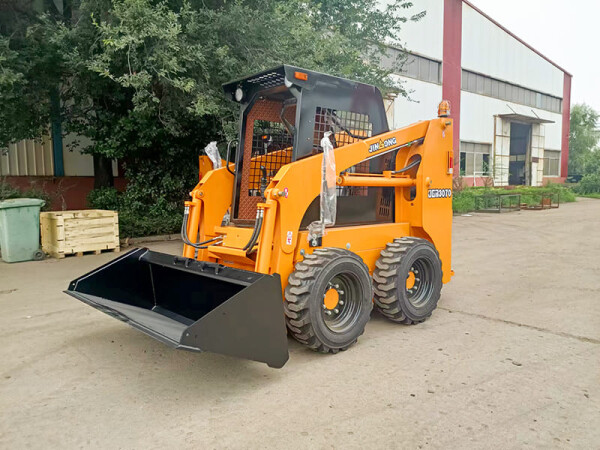

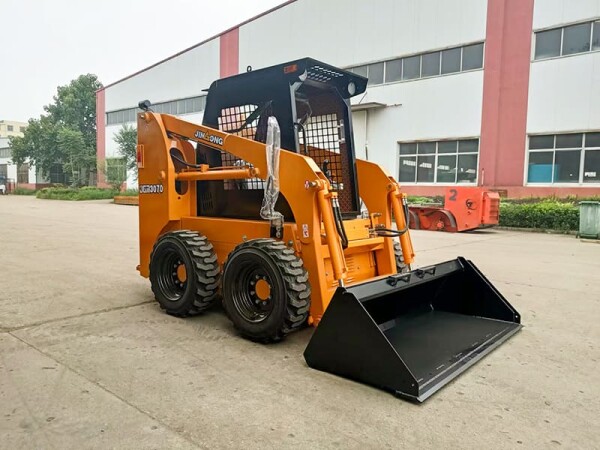

High Efficiency Skid Steer Loaders Compact Structure Wheel Skid Steer Loader JinGong JGM3070

Skid-steer loaders are also known as skid-steer loaders, multi-functional engineering vehicles, and multi-functional engineering machines. It is a wheeled special chassis device that realizes vehicle steering by utilizing the difference in the linear speed of the wheels on both sides.

SEND INQUIRY NOW

Product Details

Product description

- Delivering unmatched performance, versatility, and ease of operation, the JinGong Skid Steer Loader is ideal for small confined areas, such as construction sites, factory facilities, workshops, warehouses, docks, decks, ship cabins as well as other key sectors.

- Skid steer loader can attach various attachments to perform shoveling, stacking, lifting, digging, boring, breaking, grabbing, pushing, scarification, trenching, compacting, road cleaning, and many other operations which are provided to increase your flexibility, enabling you to handle many jobs with just the one machine.

- Using simulation technology to learn the mission data at traveling and working conditions helped optimize power and fuel efficiency.

- Compact structure, maneuverable movement suitable for narrow space operation.

- Open cabin with the mechanical control system.

- Double accelerograph control.

- Hydraulic brake.

Performance parameters

Item	JGM3070
Engine model	Xinchai B490BPG-3
Operating Weight	2750
Rated power (kW)	36.8
Rpm	2650
Max. operating pressue(bar)	18
Cycle time raise (s)	3
Cycle time lower (s)	3.5
Cycle time dump rollback (s)	2
Max. Speed (km/h)	10
Dumping reach (mm)	750
Dumping angle (°)	30
Dumping Height (mm)	2380
Ground Clearance (mm)	185
Loading Capacity (kg)	700
Bucket capacity (m³)	0.4
Turning radius W/bucket (mm)	2200
Overall Dimension (LWH) (mm)	342017402120

Note: Specifications are subject to changes by the manufacturer without prior notice.
