Product description
1. HIGH EFFICIENCY MACHINE

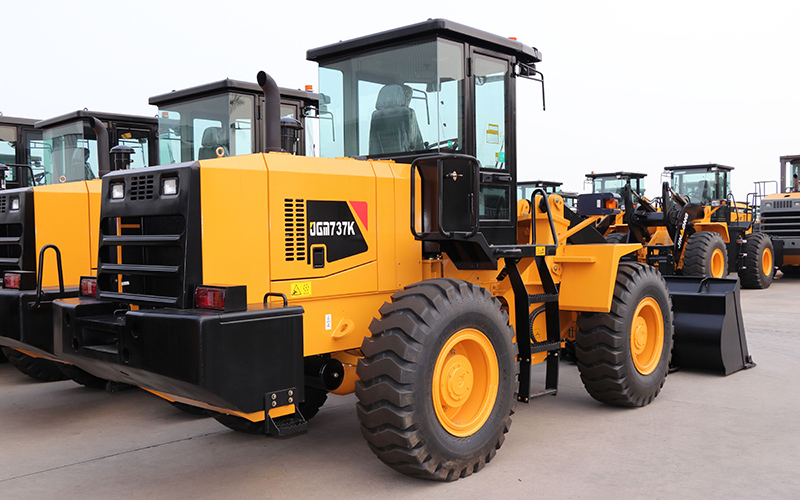

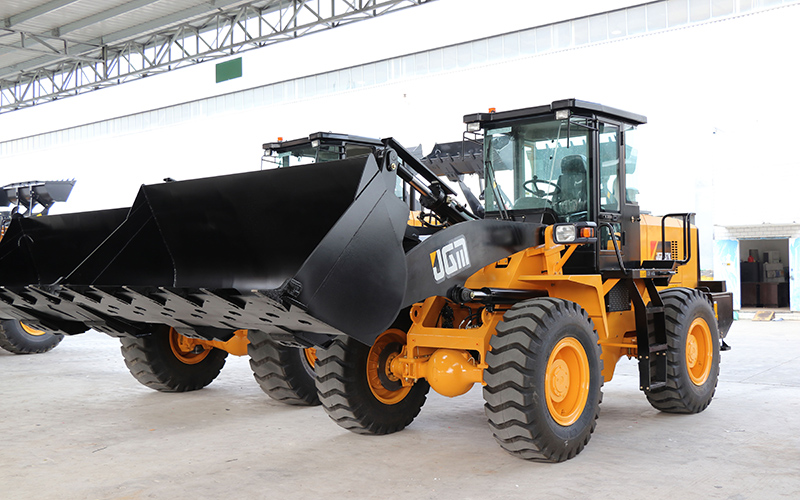

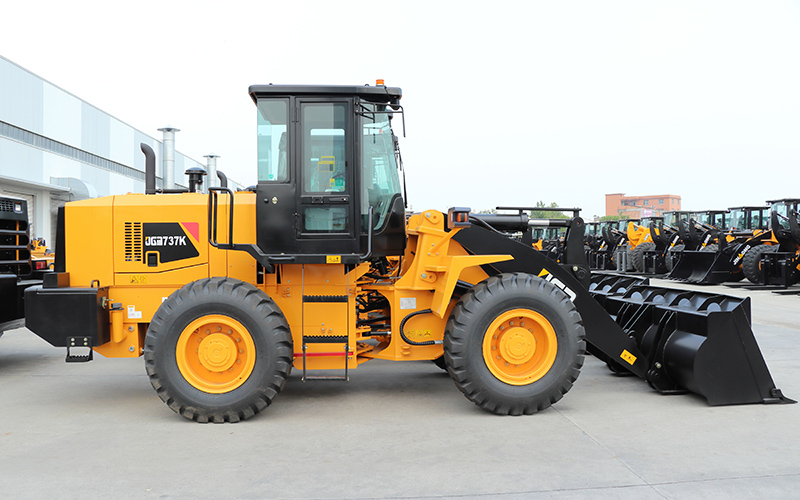

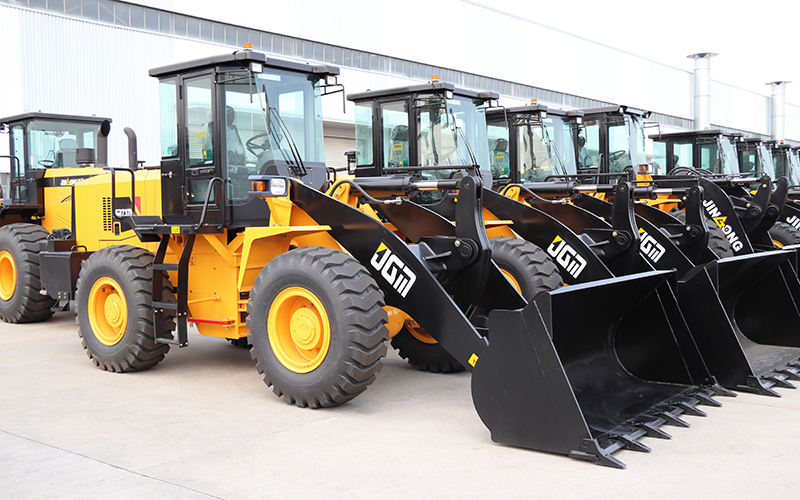

Innovative technologies make the JGM737K wheel loader fast, smooth and easy to control. JGM737K wheel loaders are designed for maximum performance to keep the operator working productively.

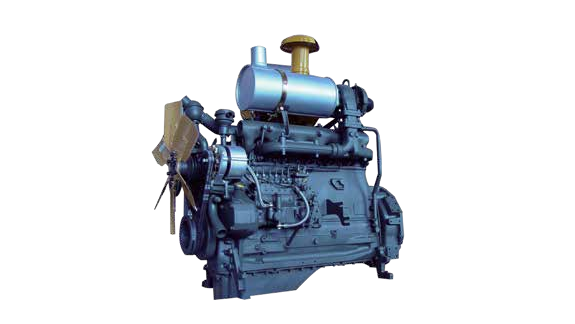

Powerful, Fuel Efficient and Energy-Saving Engine
Weichai turbocharged engine are built for maximum power, reliability and optimum fuel efficiency. This engine meets the emission standards EPA Tier II, EU Stage II. Weichai WP6 (JGM737K) engine has maximum power of 92kW and peak torque of 500 N·m at 1,400-1,500 rpm, it provides sufficient power. The Weichai engine provides more energy saving and stronger power.
Hydraulic system
This hydraulic system is of dual-pump confluence and steering - prevailing type, featuring the high efficiency and low fuel consumption. Hydraulic pump is of high-pressure gear pump, featuring the excellent performance and higher reliability. Hydraulic elements are of high standard and new process type, making its system more reliable.
Large Capacity Fuel Tank for Long Working Time
Large capacity fuel tank (180 ℓ) offers long working time.
Large Displacement Booster Pump
Braking system has equipped large displacement booster pump ensure high reliability and safety.
2. PROVEN RELIABILITY
The reliable components and solid frame structure not only improved the durability of the device, but also enhanced its work efficiency.
Reliable and Proven Transmission with The Best Combination of Engine
Durable mechanical Transmission & Torque convertor (JGM737K) is best matching with Weichai WP6 engine. Transmission & Torque convertor is reliable and easily for operation to suit in all requirements of working situations. Due to the best matching, JGM737K provides more powerful workability. Manual shifting mode, convenient for customers to choose gears according to actual conditions.
Durable and Sturdy Axle
Durable mechanical durable and sturdy front and rear axle provides running stability, good performance even in poor jobsite conditions, and maximization of the operation capability.
Firm and Durable Structural Parts
Extend product life and ensure superior running function using product structure of limited element analysis and optimization.
Double Sealing Linkage
All hinged shaft holes adopt double sealing structure, which has good dustproof and sealing effect, fully guarantees internal lubrication and prolongs lubrication and aging for several thousand years.

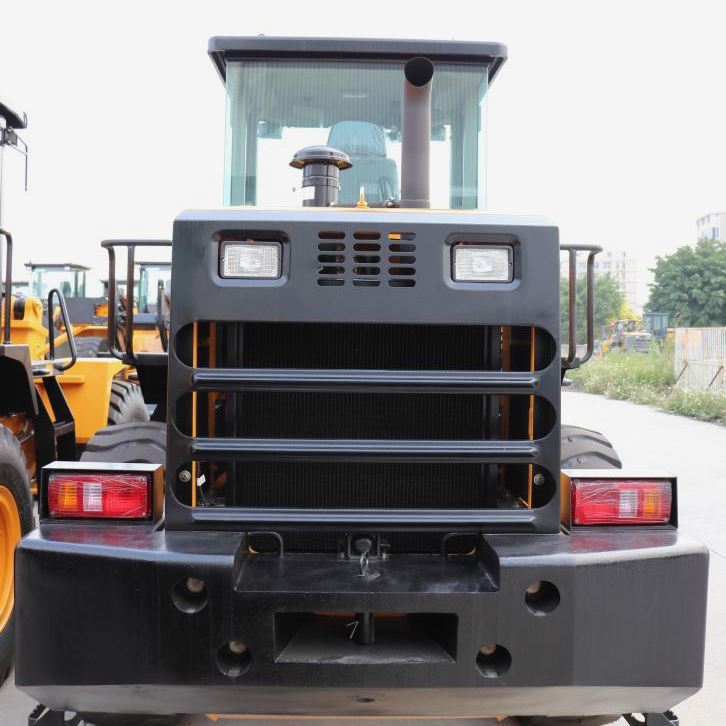

Big Size Radiator
Large capacity radiator and coolers significantly improve thermal shock, impulse and vibration resistance and increase durability.
3. EASY AND COMFORTABLE OPERATION
Operating a JGM7 Series wheel loader is unique to every operator. Operators can fully customize their work environment and operating preferences to fit their individual needs.
Spacious Cab with Excellent View
Spacious cab designed with ergonomics approach boasts low noise and excellent view, arc shaped front window, large rear window and side windows offer wide view in all directions.
Centralized Monitoring Panel
Centralized monitoring panel designed with simplicity of ergonomics that shows working conditions and warning lights at a glance.
Easy Controlled Rocker Switches
All the switches are arranged in concentrated and combined ways, easy to operate.
Standard Large Capacity Air Conditioning
Large capacity, air circulation and defrost system make the space comfortable for operators.
Excellent Air Circulation System
Excellent air conditioning and circulation system provide operators with more comfortable working environment.
Suspension Seat
It can be adjusted to the position optimized for driver's weight and size reducing operator's fatigue.
Rear Wiper (Option)
In case of rain, a lot of dust in the work environment, improving rear visibility.
Large Side Mirror
Large side mirror ensures the operator's driving safety.
Air Purification Filter
It effectively filters dusts out of the cab to keep the air clean and fresh.
Rear View Camera (Option)
Optional rear view camera helps you keep an extra eye on the jobsite.
Headlight and Turn Signal
Lights are beautifully and durably designed.
Customized Operation with Joystick Control (Option)
4. SERVICEABILITY
The JinGong JGM7 Series is the ideal equipment for easy maintenance and service.
Key-Locking Fuel Cap
The location of fuel cap increased accessibility and key locking function is applied for the prevention of vandalism.
Oil Sight Gauge
The hydraulic oil check sight gauge is installed on the side of the hydraulic tank for the convenience of maintenance check from ground level.
Quickly Changeable Brake Disc
The brake discs can be replaced quickly and easily without removing the tires, which saves maintenance time.
Non-Slip Platform
Non-slip platform and steps ensure operator's safety.

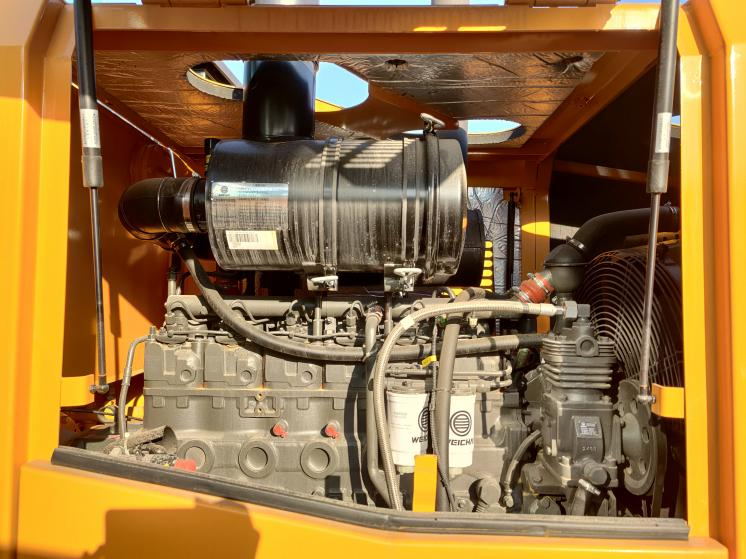

Easy Access to Engine Compartment
Engine hood with two side wing flap opened door provide access for maintenance to easily replace engine components and perform daily maintenance.
Performance parameters
| Item | JGM737K | |
| Buctket capacity (m3) | 1.7 | |
| Rated load (㎏) | 3000 | |
| Operating weight (㎏) | 10300 | |
| Max. dumping height (mm) | 2850 | |
| Max. dumping distance (mm) | 1080 | |
| Wheelbase (mm) | 2750 | |
| Wheel track (mm) | 1865 | |
| Ground clearance (mm) | 360 | |
| Overall length (mm) | 7440 | |
| Overall height (mm) | 3200 | |
| Bucket width (mm) | 2460 | |
| Dumping angle (°) | 45 | |
| Max. breakout force (kN) | ≥100 | |
| Max. traction force (kN) | ≥100 | |
| Min.turning radius (㎜) | 5516 | |
| Turning radius(at outside of tire) (㎜) | 6040 | |
| Boom lifting time (S) | ≤5.1 | |
| Total cycle time (S) | ≤9.1 | |
| Engine | Model | Weichai WP6G125E23 |
| Type | Six cylinders, in-line, water-cooled, four-stroke, direct injection. | |
| Rated power (KW) | 92 | |
| Rated speed (r/min) | 2300 | |
| Travel speed (Km/h) | F1/R1 | 0-11/0-16 |
| F2/R2 | 0-36\0-29 | |
| F3/R3 | 0-36\- | |
| F4 | 0-36\- | |
Note:Specifications are subject to changes by the manufacturer without prior notice.
